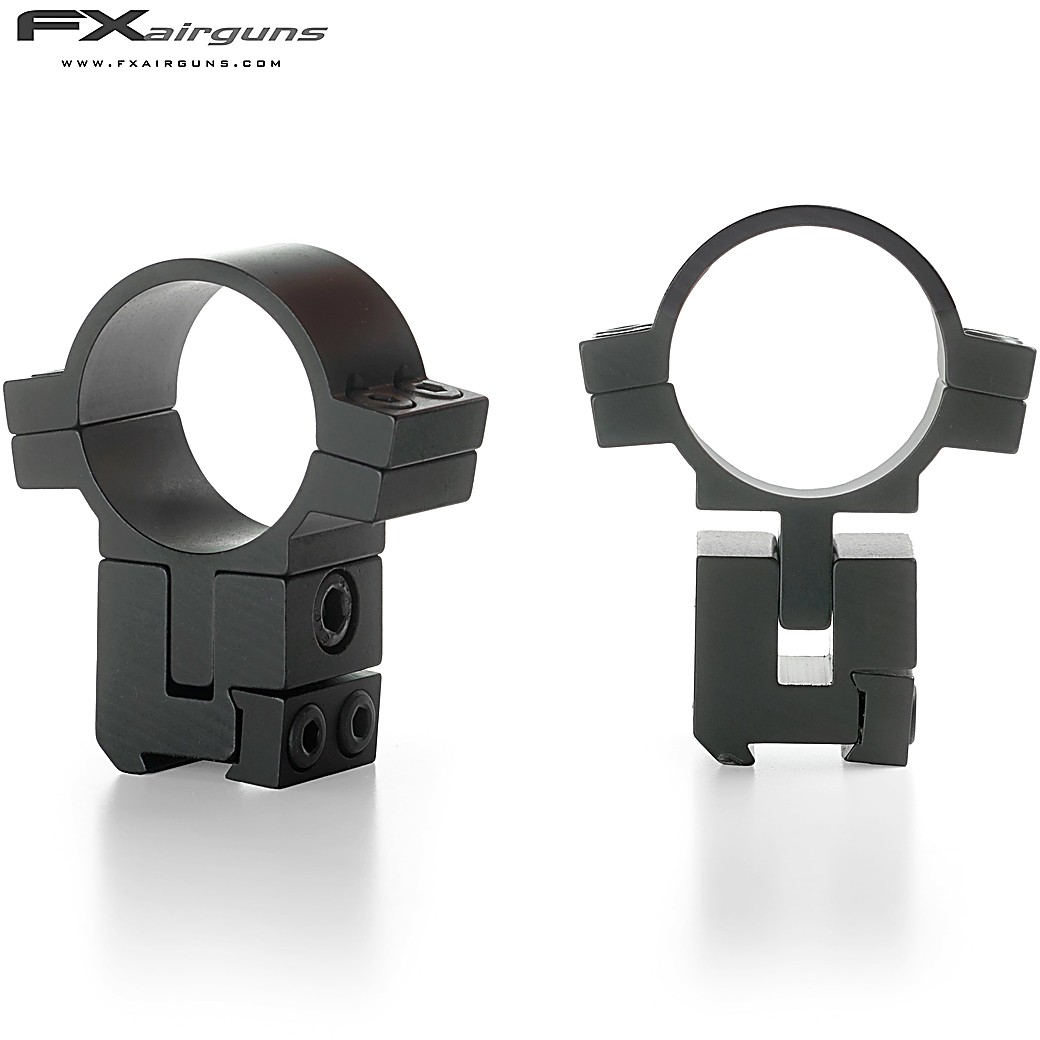

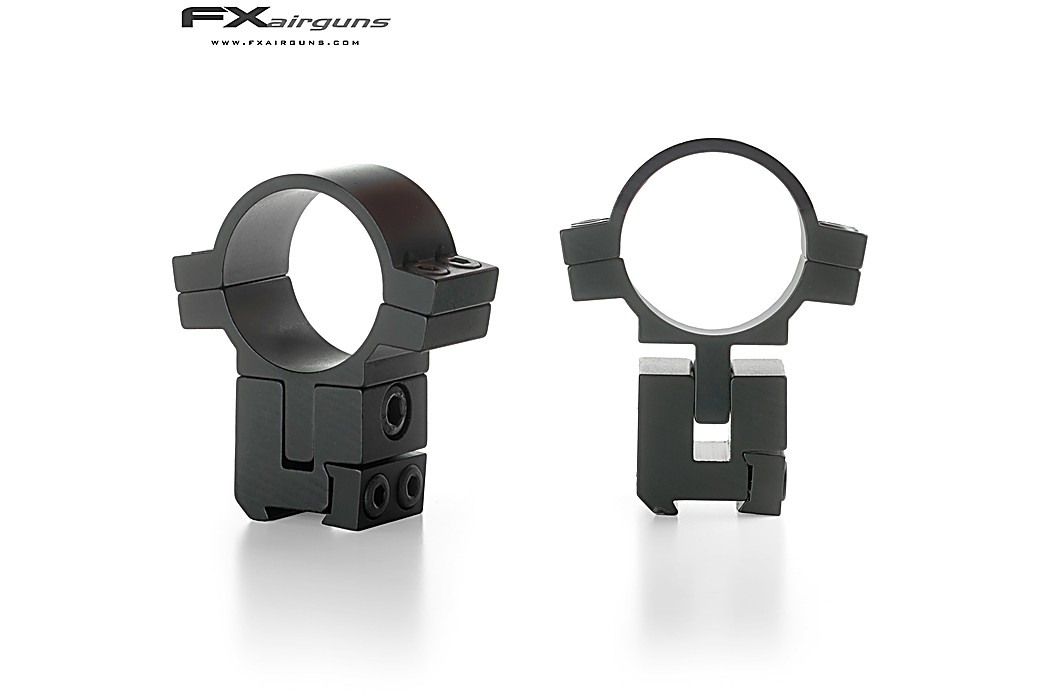

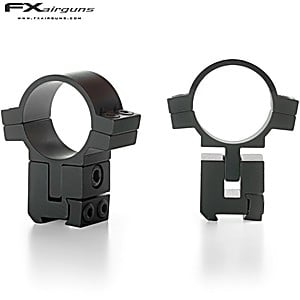

FX NO LIMIT Two-Piece Mount 1" 9-11mm ADJUSTABLE ELEVATION

30001

New

The new FX No Limit mounts eliminates all problem with limits of crosshair movement for long range shooting.

More details

59,95 €

AVAILABLE FOR IMMEDIATE DELIVERY

More info

The new FX No Limit mounts eliminates all problem with limits of crosshair movement for long range shooting.

Vertically adjustable 3,8 mm → 4 m at 100 m shooting distance. Eliminates all problem with limits of crosshair movement for long range shooting.

Always lets you use the sweet spot of your scope and fine tune with crosshairs. Easy to use and affordable! Available for 1″ and 30 mm scope tubes.

FX have developed and a really nice mount that solves a huge number of problems for all air weapons enthusiasts. You can keep the optical center and tilt the lens easily with only one screw on the bracket.

No more problems zeroing your optics.

• Available in 1 inch and 30 mm

• Easily Adjustable for Height and Angle

• Solid Locking Design

• Adjustable Height 0.170 Inches

• Adjustable Angle +/- 1.5 Degrees

• Width 0.785″ • Weight 4,2 Oz

• Height 0.915″ – 1.085″ (1 inch)

• Height 0.875″ – 1.045″ (30 mm)

  • Base Fitting: 9.5 - 11.5mm (38") Dovetails - Most popular size (suits most modern airguns & .22 rimfire rifles).
  • Tube Size: To fit 30mm diameter body tube scopes.
  • Front Lens Size: Up to 56mm - This figure describes the maximum size of the objective (front) lens the mount is designed for when the dovetails are flush with the barrel. Please bear in mind scopes with front PX adjustment will often need higher mounts.
  • Bolt Type: Allen Key bolts - Allen Key(s) Supplied.
  • Clamp Design: Double Clamp (four bolts on each cap).

Data sheet

Rail9-11mm (3/8") Dovetail
Tube diameter1" / 25,4mm

Reviews

Por (Merida, Spain) em28 Sept. 2016 (FX NO LIMIT Two-Piece Mount 1" 9-11mm ADJUSTABLE ELEVATION) :
(5/5

monturas FX

buen producto.. cumplen perfectamente con su cometido.. necesarias para poder ajustar correctamente un visor en una carabina de aire comprimido
