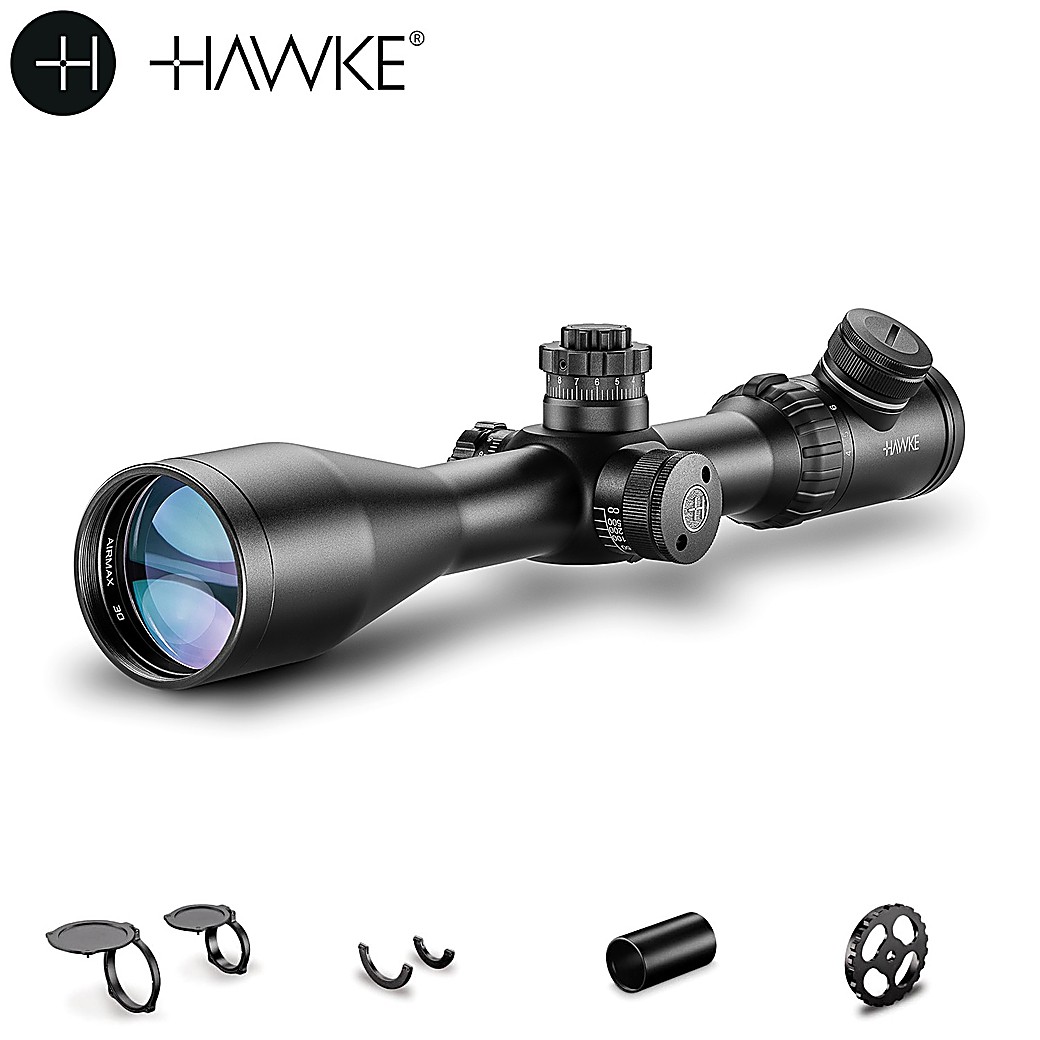

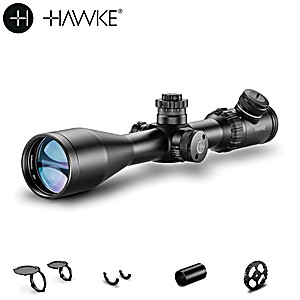

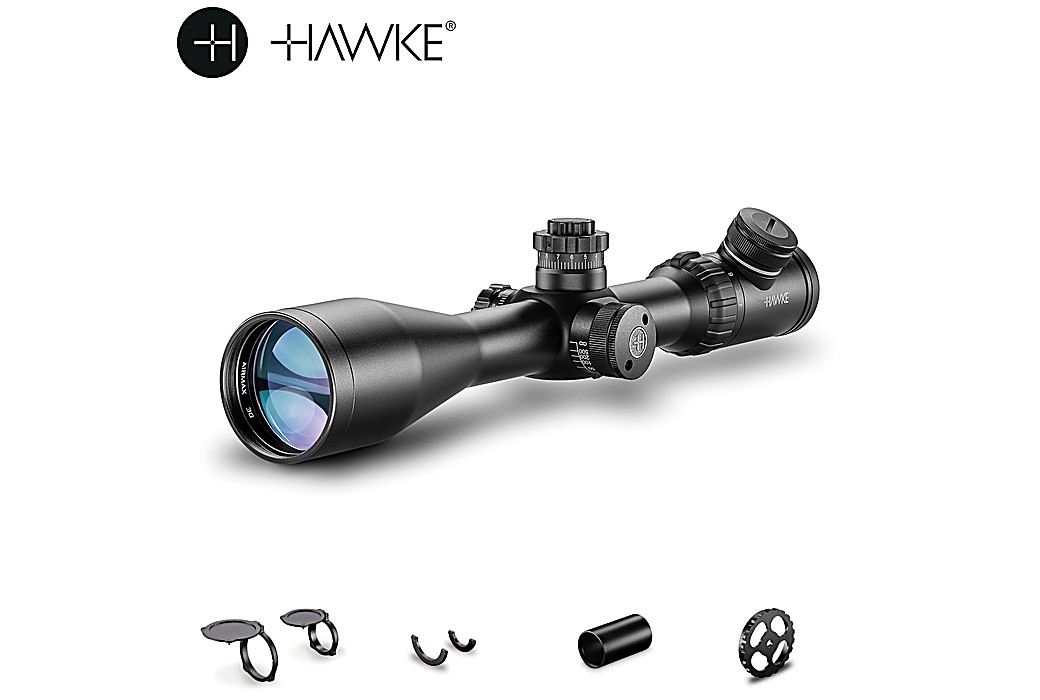

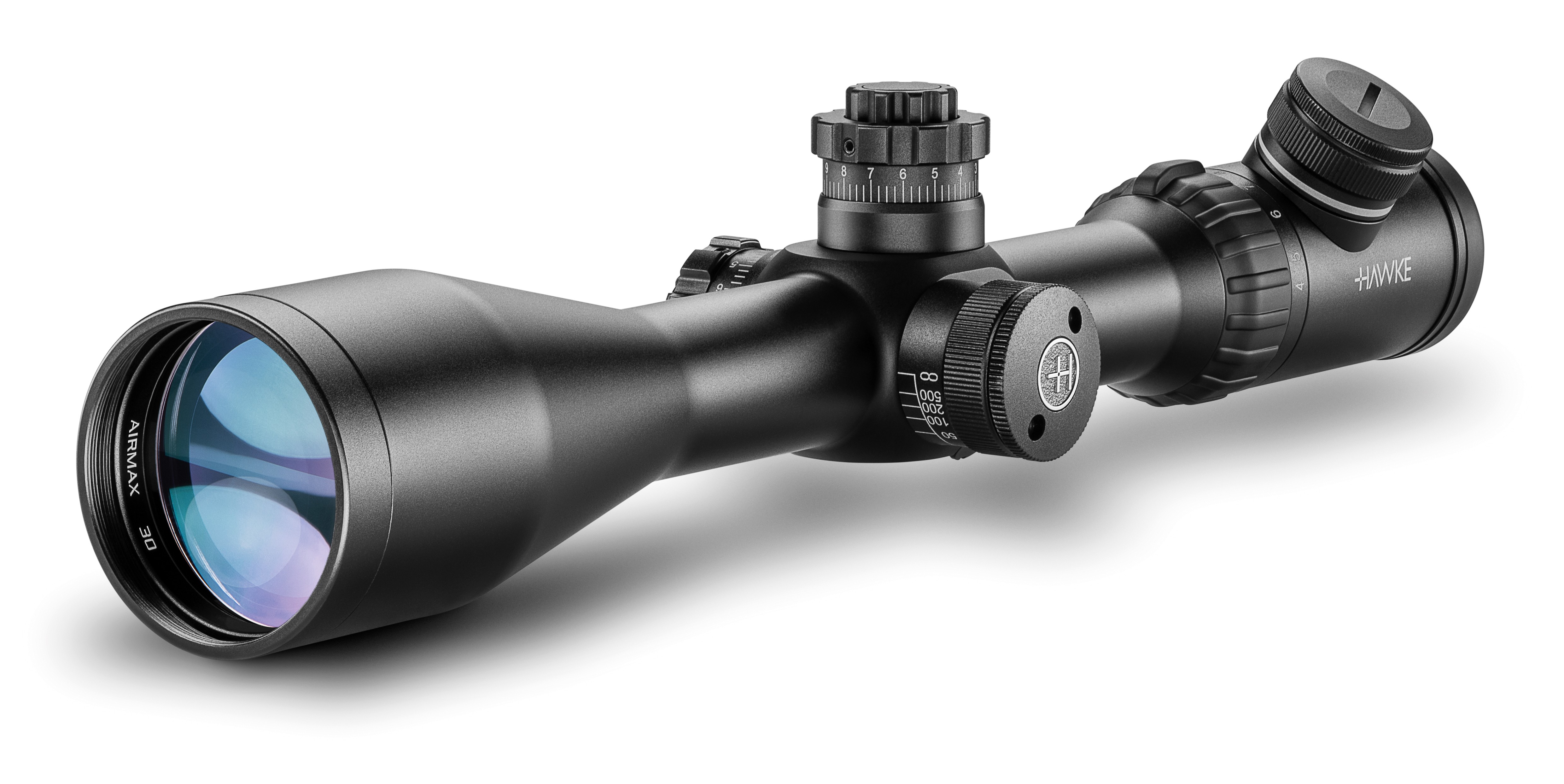

Scope Hawke Airmax 30 WA 4-16X50 AMX SF IR

​

AMX Reticle

Both the AMX and AMX IR glass etched reticles are based on the spacing of a 10x Mil Dot. The AMX offers multiple aim points, useful when shooting air guns with loopy trajectories.

Half Mil Dot spacing on the lower post provides increased aim points for long shots.

The horizontal bars are calculated at 0.5, 1.5, 2.5, 3.5 and 4.5 mil spacing. Hollow posts are segmented into mil spacing and can be used for bracketing.

Overview:

• Chassis: 30mm Mono-tube
• Optical System: 4-16×
• Objective: 50mm
• Reticle: AMX IR
• Illumination: Red - 6 Levels
• Focus/Parallax: Adjustable Objective - 9m / 10yds to infinity
• Field of View: 10.2 - 2.6m @100m / 30.7 - 7.7ft @100yds
• Click value: 1⁄10 MRAD
  Elevation Turret Clicks (max): 27 MRAD
  Windage Turret Clicks  (max): 27 MRAD
• Eye relief: 102mm / 4″
• Length: 348mm / 13.7″
• Weight: 760g / 26.8oz
• Waterproof, Shockproof, Nitrogen purged.
