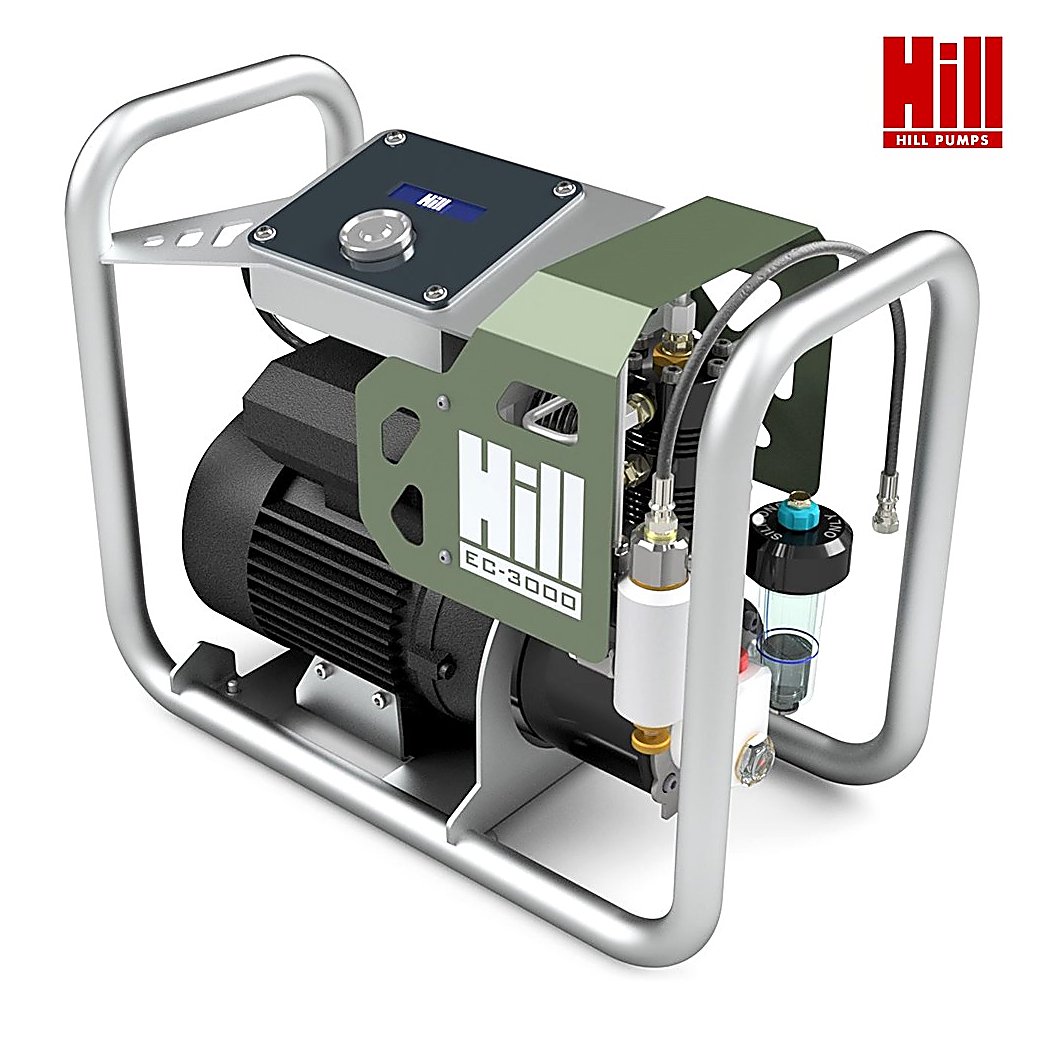

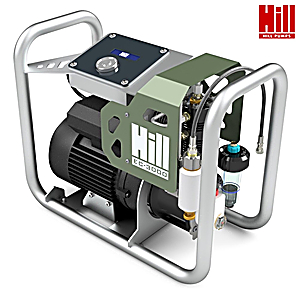

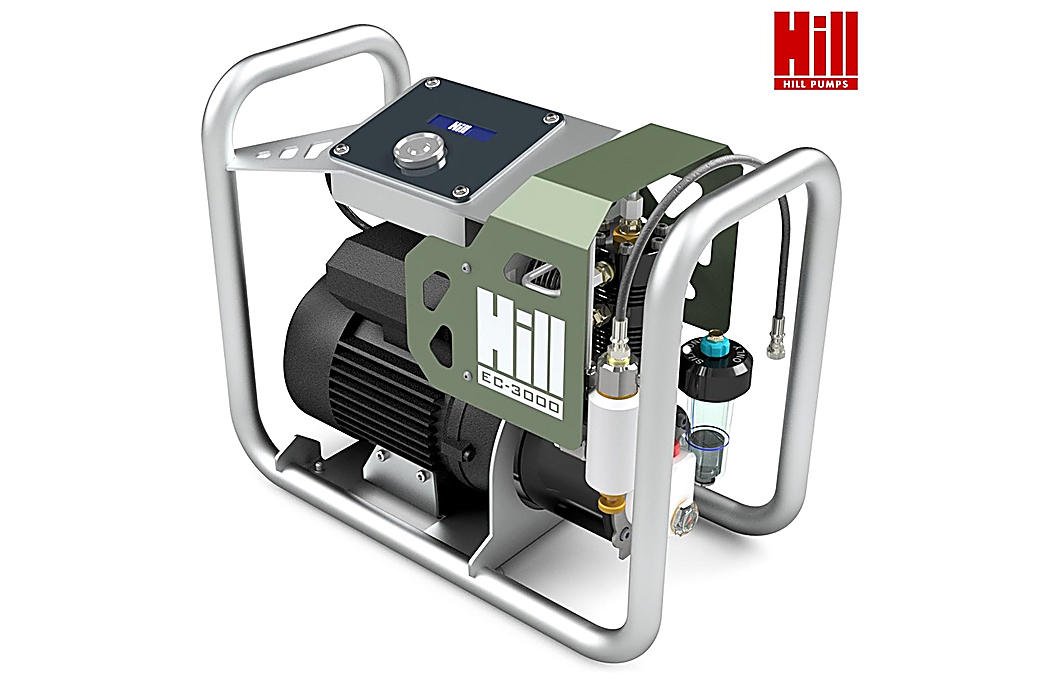

Hill EVO 310 Electric Compressor for PCP Air Rifles
3000-003EVO
New
The outstanding performance and cutting-edge features of the Hill EVO-310, make it a case of success in the industry. The EVO is engineered for peak performance and entirely crafted in the United Kingdom.
From the robust tubular metal frame to the precise electronic circuit board, every component is designed and manufactured in the UK to guarantee dependable accuracy with every fill.
Building on the success of the EC-3000, the EVO-310 introduced several significant enhancements. It offers exceptional value for money for filling your PCP. It features a digital display, automatic shut-off, integrated filter unit, and water drain system.
Reliable and efficient, the Hill EVO-310 compressor is all you need.
More info
Introducing the Hill EVO-310 PCP Air Compressor: Transforming Airgun and Airsoft Filling Technology
Experience the next level of filling technology with the Hill EVO-310 PCP Air Compressor. With over 182 years of engineering excellence at Ernest Hill Ltd., this compressor epitomizes reliability, durability, and user satisfaction. We've integrated the latest advancements and top-tier features to offer you an unmatched filling solution.
State-of-the-Art Electronic Architecture and Software
Powered by cutting-edge technology, the EVO-310 features a new electronic architecture and software, developed by our in-house engineers. Expect exceptional performance and reliability, backed by the highest quality standards for PCB manufacturing in Sheffield.
Automatic Air Pressure Purge for Enhanced Performance
The EVO-310 is equipped with an automatic air pressure purge system, ensuring optimal performance during cooling cycles or pauses in filling. This system reduces motor strain and efficiently purges air and moisture, providing exceptional reliability, especially when filling larger rifles and cylinders.
Highly Accurate Digital Pressure Sensor with Analog Gauge
Monitor your fill levels with precision using the EVO-310's highly accurate digital pressure sensor and analog gauge. Enjoy accurate and consistent pressure readings without the need for recalibration, ensuring optimal performance throughout your filling sessions.
Super Durable Shuttle Valve for Extended Lifespan
Constructed from advanced materials, the EVO-310's super durable shuttle valve ensures longevity and reliability, even under demanding conditions. This innovative valve is designed to withstand the test of time, delivering consistent performance with every use.
A reliable partner for the future to come
The longevity of the compressor is supported by two oil reservoirs: one for the crankcase oil and one for silicone oil for the pump. It is recommended to change the oil every fifty hours or at least once a year. The compressor can operate between 5 and 75 °C, and it will automatically shut off to cool down if it reaches the upper temperature limit, resuming filling once cooled.
Adjustable Pressure Range for Versatile Applications
The EVO-310 offers an adjustable pressure range from 50 bar (755 psi) to an impressive 310 bar (4500 psi), tailored to meet your specific needs.
Simple Maintenance and Unrivaled Support
Maintaining your EVO-310 is straightforward, thanks to its user-friendly design.
Access tutorial videos on Hill's website and rely on our dedicated support team for assistance whenever needed.
We're committed to delivering an exceptional customer experience from start to finish.
Specifications
- Maximum Output Pressure: 310 BAR
- Adjustable Output Pressure Setpoint
- Automatic Shut-Off
- 230 Volts EU Plug
- Air Cooled
- Automated Cool Down Cycle During Fills: Compressor stops and restarts once cooled
- Digital Display
- Output Hose with Female Quick Disconnect Fitting
- Adjustable Unit Display: BAR, PSI, MPa
- Displays Fill Pressure and Temperature (in Celsius) During Fill
- Integrated Output Filter with Bleed Valve
- Ultra Quiet Operation: 75 dB
- Dimensions: Length – 465mm (18.3"), Height – 385mm (15.16"), Width – 235mm (9.25")
- Weight: Approximately 23.5 kg (55 lbs)
- Made in England
This compressor is also capable of filling large charging cylinders. The EVO-310 is an evolution of the previous EC-3000 model, featuring several key upgrades.
Extensive testing of the Hill EVO-310 has shown that it can fill a 480 cc air bottle from 100 to 250 bar in just 2.5 minutes. Filling a 3-liter charging cylinder from 100 to 300 bar took 45 minutes, including cooling-down time.
Filling Time Estimates (Including Cool Down Stops)
- FX Dreamline Classic (250cc): 0 – 230 BAR in approximately 3:50 minutes
- Kral Puncher Jumbo (425cc): 0 – 200 BAR in approximately 7:15 minutes
- Umarex Gauntlet (213cc): 0 – 3000 PSI in approximately 3:30 minutes
- Airforce Texan LSS CF (475cc): 150 – 250 BAR in approximately 3:30 minutes
- Benjamin Marauder (215cc): 1500 – 3000 PSI in approximately 1:45 minutes
- Airforce Condor (490cc): 0 – 3000 PSI in approximately 8 minutes
You can also can count on available parts and kits to maintain the proper performance of your compressor over the years to come.
Hill EVO-310 PCP Air Compressor – where reliability, performance, and affordability meet.
Data sheet
| Max Fill Pressure | 310 BAR (4500 psi) |
| Product Dimensions | 46,5 x 38,5 x 23,5 cm |
| Product Total Weight | 23,5 Kg |
| Country of Manufacture | United Kingdom |
