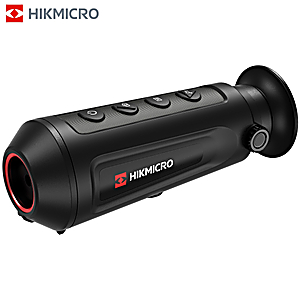

Thermal Imaging Monocular Hikmicro Lynx LC06 (160x120)

The HIKMICRO LC06 handheld thermal monocular camera is equipped with a 160 × 120 px image sensor and a 720 × 540 px LCOS display .It supports functions of observation, distance measurement, Wi-Fi hotspot, etc.

The built-in high-sensitivity thermal detector provides you with clear vision even in total darkness. The monocular can be mainly used for patrolling, search and rescue, hiking, travel and hunting.

Features:

• High sensitivity thermal module with 160 x 120 px NETD resolution
• Leading thermal image processing technology: Adaptive AGC, DDE, 0.2 inch LCOS display with 3D DNR 720 × 540 px resolution
• Built-in rechargeable lithium battery
• Up to 10 hours of continuous operation Wi-Fi access point
• Type C interface

Specifications

• Image sensor: 160 × 120 px VOx uncooled focal plane arrays 160 × 120 px
• Frame rate: 50 Hz
• Pixel spacing: 17 μm
• Waveband response: 8 μm 14 μm
• Lens: 6.2 mm
• NETD: Less than 35 mK (@ 25 ° C), F# = 1.1
• IFOV: 2.74 mrad
• Field of view: 24.7 ° × 18.7 ° ( H × V) F1.1
• Image display: 0.2 inches, LCOS, 720 × 540 px
• Color Palettes: Vivid Black, Vivid White, Vivid Red, Fusion Auto,
• Digital zoom : Manual, External correction 1 ×, 2 ×, 4 ×
• Hot Track: Yes
• Detection range: 219 meters
• Built-in memory module (8 GB): Yes
• Video recording: Yes
• Snapshot capture: Yes
• Wifi: Yes
• Standby Mode: Yes
• Battery Type: Rechargeable lithium battery
• Operating Time: 10 hours continuous operation with CVBS and Wi-Fi hotspot off / 7.5 hours continuous operation with CVBS and Wi-Fi hotspot on
• Power: 5 VDC / 2 A, 1.5 W, Type C interface from -20°C to 55°C (-4° F to 131° F)
• Operating Temperature / Humidity: Humidity: 90% or less IP67
• Dimensions: 158.3 mm × 61 mm × 57 mm (158.3 mm × 61 mm × 57 mm)
• Weight: 250 gr.
• Warranty: 36 months.
• Sensor warranty: 10 years
